TECHNICAL DATA:

• Voltage: 230 V
• Rated Current: 16A
• Number of Phases: 1
• Protection Rating: IP 44
• Total adapter length: approx. 50 cm
• Cable type: OW (H05RR-F)
• Number and nominal cross-section of cores: 3x2.5 mm²
• Nominal insulation thickness: 0.9 mm
• Nominal sheath thickness: 1.1 mm
• Approximate cable diameter: 10.2 mm
• Max. conductor wire diameter: 0.24 mm
• Max. core resistance at 20°C: 8.21 Ω/km
• CE certified.

Technical Data - Plug:

• Voltage: 230V
• Type: Schuko
• Rated Current: 16A
• Protection Rating: IP 44

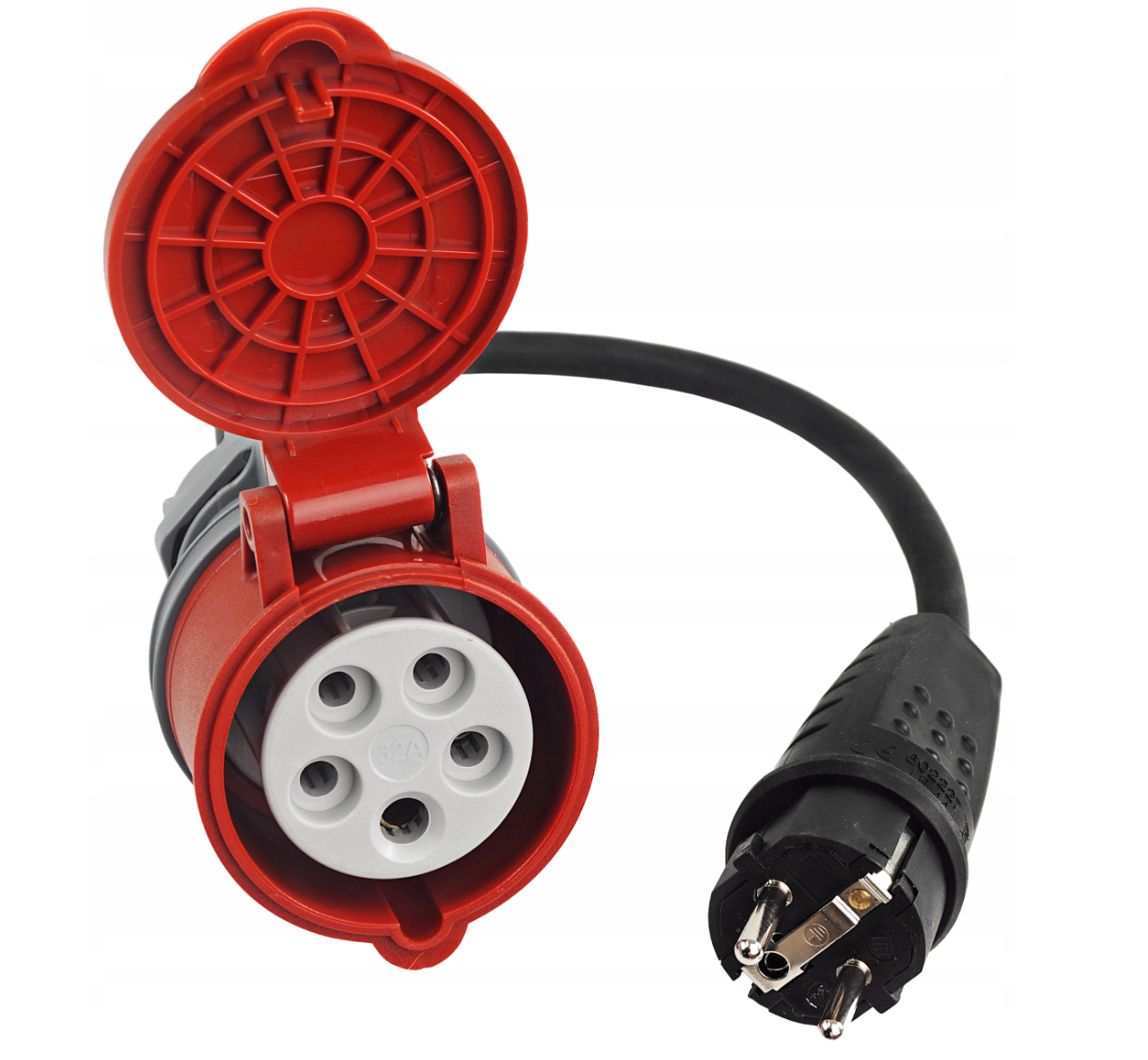

Technical Data - Socket:

• Voltage: 230/400 V (only 1st phase connected)
• Type: CEE32A
• Rated Current: 16 A
• Number of Pins: 5P (2 and 3 Pin not connected)
• Protection Rating: IP 44
